Monocrystalline Module
ADVANCED PERFORMANCE & PROVEN ADVANTAGES
High module conversion efficiency up to 18.30% through innovative five busbar cell
technology.
Low degradation and excellent performance under high temperature and low light conditions.
Robust aluminum frame ensures the modules to withstand wind loads up to 3600Pa and snow loads up to 5400Pa.
High reliability against extreme environmental conditions (passing salt mist, ammonia and hail tests).
Potential induced degradation (PID) resistance.
CERTIFICATIONS
IEC 61215, IEC 61730, UL 1703,IEC 62716,IE 61701, IEC TS 62804, CE, CQC
ISO 9001:2015: Quality management system
ISO 14001:2015: Environmental management system
ISO 45001:2018: Occupational health and safety management system
SPECIAL WARRANTY
20 years product warranty
30 years linear power output warranty
| ELECTRICAL CHARACTERISTICSAT STC | ||||||
| Maximum Power (Pmax) | 360W | 365W | 370W | 375W | 380W | 385W |
| Open Circuit Voltage (VOC) | 41.2V | 41.4V | 41.6V | 41.8V | 42.0V | 42.2V |
| Short Circuit Current (ISC) | 11.16A | 11.23A | 11.30A | 11.37A | 11.44A | 11.51A |
| Voltage at Maximum Power (Vmp) | 34.2V | 34.4V | 34.6V | 34.8V | 35.0V | 35.2V |
| Current at Maximum Power (Imp) | 10.53A | 10.62A | 10.70A | 10.78A | 10.86A | 10.94A |
| Module Efficiency (%) | 19.73 | 20.01 | 20.28 | 20.55 | 20.83 | 21.1 |
| Operating Temperature | -40°C to +85°C | |||||
| Maximum System Voltage | 1000V DC/1500V DC | |||||
| Fire Resistance Rating | Type 1(in accordance with UL1703)/Class C(IEC61730) | |||||
| Maximum Series Fuse Rating | 20A | |||||
| ELECTRICAL CHARACTERISTICSAT NOCT | ||||||
| Maximum Power (Pmax) | 267W | 271W | 275W | 279W | 283W | 287W |
| Open Circuit Voltage (VOC) | 37.8V | 38.0V | 38.2V | 38.4V | 38.6V | 38.8V |
| Short Circuit Current (ISC) | 9.03A | 9.09A | 9.15A | 9.21A | 9.27A | 9.33A |
| Voltage at Maximum Power (Vmp) | 31.2V | 31.4V | 31.6V | 31.8V | 32.0V | 32.2V |
| Current at Maximum Power (Imp) | 8.56A | 8.64A | 8.71A | 8.78A | 8.85A | 8.92A |
| MECHANICAL CHARACTERISTICS | |
| Cell type | Monocrystalline PERC 166*83mm |
| Number of cells | 120(6x20) |
| Module dimensions | 1756x1039x35mm(69.13x40.91x1.38inches) |
| weight | 20kg(44.1lbs) |
| Front cover | 3.2mm(0.13inches)tempered glass with AR coating |
| Frame | Anodized aluminum alloy |
| Junction box | IP68,3 diodes |
| Cable | 4mm²（0.006inches²）,Lenght:Portrait:300mm (11.81inches);Landscape:1200mm(47.24inches) |
| Connector | MC4 OR MC4 compatible |
| TEMPERATURE CHARACTERISTICS | |
| Nominal Operating Cell Temperature(NOCT) | 43℃±2℃ |
| Temperature Coefficents of Pmax | -0.36%/℃ |
| Temperature Coefficents of Voc | -28%/℃ |
| Temperature Coefficents of Isc | 0.05%/℃ |
| PACKAGING | |
| Standard packing | 31pcs/pallet |
| Module quantity per 20' container | 186pcs |
| Module quantity per 40' container | 806pcs |
Related products
-

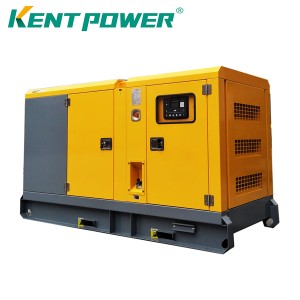

KT-Deutz Series Diesel Generator
